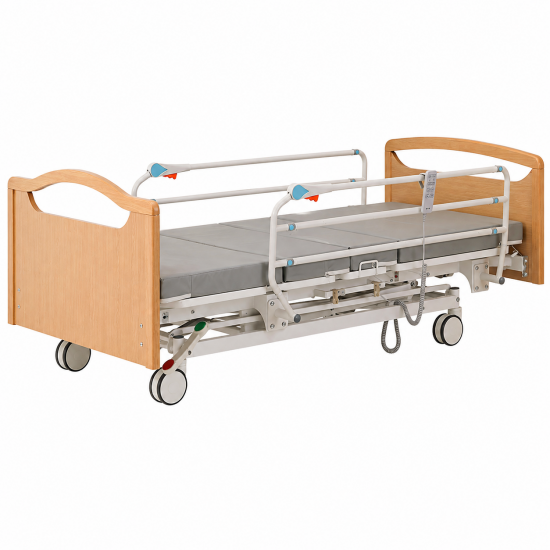

Nursing Bed

Electric Home Care Bed That Adapts to Different Moments of the Day

A long-term care bed does not need to remain at one height throughout the day. The position that feels appropriate while an elderly user is resting can be very different from the height needed when a family member or professional caregiver is providing hands-on assistance.

This electric 5-function home care bed addresses both situations with a wide mattress platform height range of approximately 230–700 mm. It can be lowered to create a low-level resting environment and raised substantially when closer caregiver access is required.

Backrest adjustment, knee positioning and whole-bed tilt functions provide additional flexibility, while the wooden-finish head and foot panels give the product a warmer appearance for home-like and residential care environments.

23cm Low Position for a More Accessible Care Environment

Lower the Mattress Platform During Rest

At its minimum setting, the mattress platform reaches approximately 230 mm from floor level. This low position can be useful for elderly users and people with reduced mobility when a lower sleeping surface is preferred as part of their individual care arrangement.

Closer to Floor Level Than a Conventional Care Bed

Many conventional nursing beds are designed primarily around caregiver working height. As a result, even their lowest position may remain relatively high for users who would benefit from a lower resting surface.

The 230 mm minimum height gives this model a distinctly low-level configuration while retaining the ability to return to a much higher position when required.

A Low Bed Should Still Be Able to Rise High Enough

Keeping the mattress close to the floor can be useful during certain periods, but providing personal care from the same height may be inconvenient. This is where the wide adjustment range becomes especially important.

Instead of remaining permanently low, the entire mattress platform can be electrically raised as care requirements change.

Raise the Bed to 70cm When Assistance Is Needed

Elevated Position for Caregiver Access

The mattress platform can rise to approximately 700 mm from floor level. This provides a substantially different working position compared with the 230 mm low setting.

Before changing bedding, assisting with repositioning, dressing or carrying out other routine care activities, the caregiver can raise the bed to a more accessible level and lower it again afterward.

470mm of Height Travel in One Bed

From its lowest to highest setting, the bed provides approximately 470 mm of electric height adjustment. This broad range allows one product to adapt to both user-focused and caregiver-focused requirements.

For buyers comparing different Nursing Bed models, the complete height range can therefore be more important than considering minimum height alone.

Five Powered Functions for Everyday Position Changes

Electric Backrest Adjustment

The back section can be raised electrically to support different upper-body positions throughout the day. A more upright position can be useful for meals, reading, conversation and other activities performed while remaining in bed.

Position Changes without Manual Cranking

Electric control makes repeated adjustments easier for family members and professional caregivers, particularly when the user's position needs to be changed several times during the day.

Electric Knee-Rest Adjustment

The knee section can be elevated independently to change the lower-body position. It can also be combined with backrest elevation to create different resting configurations.

Electric 230–700mm Hi-Low Adjustment

The complete sleeping platform can be electrically raised and lowered across its wide height range. This is the defining function of the model and allows the bed to transition between low-level rest and elevated care positions.

Trendelenburg Positioning

The complete mattress platform can be tilted into a Trendelenburg position through the electric control system, providing additional whole-bed positioning capability.

Reverse Trendelenburg Positioning

The platform can also tilt in the opposite direction to provide reverse Trendelenburg positioning. Together with backrest, knee and height adjustment, this completes the five-function electric configuration.

Designed to Look More Like Furniture and Less Like Hospital Equipment

Wooden-Finish Head and Foot Panels

Appearance becomes more important when a care bed is used for months or years rather than for a short hospital stay. Large wooden-finish panels at the head and foot ends help reduce the institutional appearance normally associated with medical beds.

Better Integration with Residential Interiors

The warm wood-style surfaces can coordinate more naturally with bedside cabinets, wardrobes and other furniture found in home-like care rooms.

This makes the model particularly relevant to residential elderly care, assisted living, senior apartments and long-term home care projects where buyers want professional functions without creating an excessively clinical atmosphere.

Long Side Rails for Daily Care Requirements

Protection When Raised

The bed is equipped with long side rails covering a substantial section of the sleeping platform. When raised, they provide bedside protection according to the user's care requirements.

Convenient Access When Lowered

The rails can be lowered when a caregiver needs direct access to the user. This allows the bedside configuration to change between resting and hands-on care situations.

One Bed, Several Daily Height Scenarios

Night and Resting Position

The bed can be moved toward its approximately 230 mm low position when a reduced mattress height is preferred.

Eating and Daytime Activities

The backrest and knee sections can be adjusted electrically to create different supported positions without changing to another chair or support surface for every activity.

Personal Care Position

When a caregiver needs closer access, the mattress platform can be raised toward its higher working range.

Return to Low Position

After the care activity has been completed, the bed can be lowered again according to the user's requirements.

Height That Changes with the Care Routine

This ability to move between different heights is particularly valuable in long-term care because the user's needs and caregiver activities change repeatedly throughout the day.

Who Is This Electric Care Bed Suitable For?

Long-Term Home Care

For users requiring extended assistance outside an acute hospital environment, the five powered functions provide flexibility for different daily positions.

Residential Elderly Care

The combination of low-level positioning and wooden styling makes the model suitable for environments designed to feel more residential than clinical.

Assisted Living Facilities

The wide height adjustment range allows staff to adapt the same bed for residents with different levels of mobility and care requirements.

Rehabilitation Care

Electric positioning can be useful where the user's preferred resting and activity positions change during a longer recovery period.

Home Healthcare Equipment Providers

For distributors and care equipment suppliers, the 230–700 mm adjustment range provides a clear point of differentiation from conventional electric home care beds with narrower height travel.

23–70cm or 10–50cm: Which Ultra-Low Bed Should Buyers Choose?

Choose According to the Care Priority, Not Just the Lowest Number

Two low-level care beds can serve different purposes even when both are described as ultra-low models. Buyers should compare the complete design rather than simply selecting the product with the smallest minimum-height figure.

10–50cm Ultra-Low Model

A 100 mm minimum platform height is better suited to applications where achieving an exceptionally low floor-level position is the primary requirement. A foldable structure can also be valuable when compact storage is an important consideration.

23–70cm Wide-Range Model

This model places greater emphasis on combining a low 230 mm position with a much higher 700 mm caregiver-access position. Its approximately 470 mm adjustment travel gives the bed greater flexibility between resting and hands-on care heights.

For care environments where caregivers frequently assist the user at bedside, the higher maximum working position can be an important purchasing consideration.

Key Product Specifications

Product Type

Electric 5-function low-level home and residential care bed.

Minimum Platform Height

Approximately 230 mm from floor level.

Maximum Platform Height

Approximately 700 mm from floor level.

Total Height Adjustment Range

Approximately 470 mm.

Backrest Function

Electric backrest positioning.

Knee-Rest Function

Electric knee section positioning.

Hi-Low Function

Electric whole-bed height adjustment between approximately 230 and 700 mm.

Whole-Bed Tilt

Electric Trendelenburg and reverse Trendelenburg positioning.

Control System

Handheld electric controller.

Side Rails

Long foldable side rails for protection and caregiver access.

Head and Foot Panels

Wooden-finish design for home-like and residential care environments.

Recommended Applications

Home care, residential elderly care, assisted living, rehabilitation facilities and long-term care environments.

A Care Bed That Balances User Height and Caregiver Height

The main advantage of this model is the ability to adapt the sleeping platform to two very different requirements. At approximately 230 mm, the bed provides a low-level position for the user. At approximately 700 mm, it becomes a higher working platform that provides caregivers with easier bedside access.

The 470 mm electric height range, combined with five powered positioning functions and a residential wooden appearance, makes this model particularly suitable for long-term care environments where comfort, accessibility and daily caregiver operation all need to be considered.

For OEM configurations, bulk purchasing, home care projects or distributor cooperation, please contact us for detailed product and quotation information.
