Standing Bed

Advanced Rehabilitation Support Beyond a Conventional Home Care Bed

Long-term rehabilitation can involve much more than comfortable sleeping and basic backrest adjustment. Users with significantly reduced mobility may require assisted position changes, progressive upright positioning and a wider range of whole-body adjustments as part of a professionally supervised rehabilitation program.

This advanced electric standing care bed combines everyday positioning functions with specialized rehabilitation capability. The system provides electric backrest elevation, leg adjustment, whole-bed lifting, forward and backward tilt, plus progressive standing adjustment from 0° to 70° ±5°.

Rather than functioning only as a place to rest, the bed provides a flexible platform that can support different stages of positioning throughout extended rehabilitation care.

Follow the User Through Different Stages of Positioning

Start with a Conventional Lying Position

When specialized rehabilitation positioning is not required, the bed can remain in a normal horizontal configuration for resting and routine care. This makes the equipment practical between rehabilitation sessions rather than limiting its use to standing training alone.

Raise the Upper Body for Supported Activities

Backrest Range: 0°–60° ±5°

The electrically adjustable back section allows the upper body to transition from flat lying toward a supported sitting position. This can provide a more practical posture for meals, communication and routine assisted care.

Adjust Lower-Body Support Independently

Leg Section Range: 0°–35° ±5°

The leg section can be raised independently according to positioning requirements. Back and leg movements can also be combined to create additional supported postures between completely flat and upright positions.

Progressive Upright Positioning for Rehabilitation Programs

Electric Standing Adjustment from 0° to 70° ±5°

The defining rehabilitation function of this model is the ability to raise the complete patient support platform progressively toward an upright position. The electric standing range extends from 0° to 70° ±5°.

Intermediate angles can be selected during supervised operation, allowing rehabilitation professionals to determine an appropriate platform position according to the user's individual program and tolerance.

Standing Function Integrated into the Bed

Because the tilt-up mechanism is incorporated into the same platform used for lying and supported positioning, the user does not need to be moved to a separate basic tilt table every time an upright positioning session is required.

This integrated approach is one of the main differences between this product and a conventional electric Nursing Bed.

Multi-Point Support During Tilt-Up Positioning

Adjustable Body Support Straps

As the complete platform moves away from the horizontal position, maintaining appropriate body support becomes increasingly important. Multiple adjustable support straps are therefore positioned along the mattress platform.

The support arrangement helps stabilize different areas of the body during supervised tilt-up procedures and should be correctly adjusted before the standing function is operated.

Foot-End Support for Upright Positioning

A dedicated support structure at the lower end of the platform provides additional contact and support as the user approaches a more upright position.

Protective ABS Side Rails

Segmented ABS side rails provide lateral protection during normal bed use and positioning. Their structure is designed to work with the articulated mattress platform as different sections are adjusted.

Adjust the Entire Bed to the Caregiver's Working Position

Electric Whole-Bed Height Adjustment

Long-term care involves repeated assistance with positioning, preparation and routine bedside activities. For this reason, this model adds electric whole-bed lifting instead of maintaining one fixed platform height.

The complete bed can be raised or lowered according to different care and rehabilitation requirements, giving caregivers greater flexibility when preparing the user or carrying out assisted procedures.

Why Height Adjustment Matters

A standing function primarily changes the user's orientation, while whole-bed lifting changes the working level of the complete platform. These are two different functions, and their combination makes this model considerably more adaptable than a basic standing bed.

Additional Whole-Body Positioning with Bidirectional Tilt

Forward Tilt Greater Than 12°

The complete support platform can be electrically tilted forward by more than 12°. This movement changes the orientation of the entire bed rather than only an individual mattress section.

Backward Tilt Greater Than 12°

The bed also supports backward tilt of more than 12°, providing movement in the opposite direction and expanding the range of whole-platform positions available to professional caregivers.

Different from Backrest Adjustment

It is important for buyers to distinguish whole-bed tilt from backrest elevation. Backrest adjustment changes only the upper section of the mattress platform, while forward and backward tilt change the angle of the complete support surface.

Who Is This Bed Intended For?

This is not positioned as a basic adjustable bed for users who require only everyday sleeping assistance. Its configuration is better suited to extended rehabilitation programs where multiple positioning functions and supervised standing capability are required.

Long-Term Rehabilitation Care

The combination of routine bed positioning and progressive standing makes the model suitable for users whose rehabilitation program extends beyond short treatment sessions.

Professional Home Rehabilitation Services

Where rehabilitation is delivered outside a hospital, this model can provide professional care providers with a broader range of positioning options than a conventional home care bed.

Community and Transitional Care

The integrated functions can also be relevant for rehabilitation and transitional care environments where users continue mobility and positioning programs after leaving an acute hospital setting.

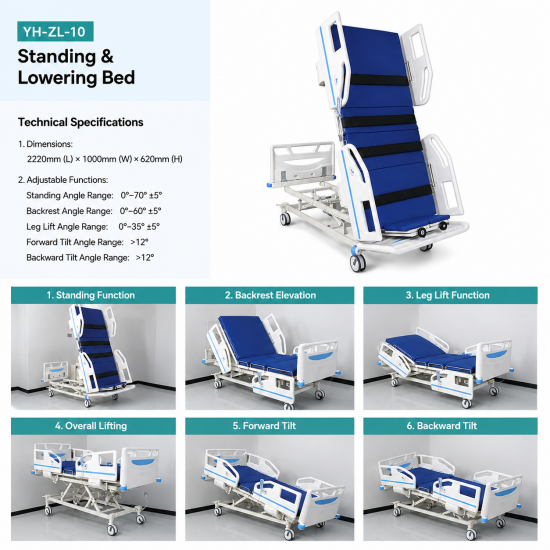

Technical Configuration at a Glance

Overall Dimensions

2220 mm (L) × 1000 mm (W) × 620 mm (H).

Progressive Standing

Standing / Tilt-Up Angle

0°–70° ±5°.

Individual Bed Section Adjustment

Backrest

0°–60° ±5°.

Leg Section

0°–35° ±5°.

Whole-Bed Adjustment

Height Adjustment

Electric whole-bed lifting and lowering. The current product information does not specify the minimum and maximum height range.

Forward Tilt

Greater than 12°.

Backward Tilt

Greater than 12°.

Patient Support

Multi-point adjustable support straps, foot-end support and protective ABS side rails.

Choosing Between a Standard Care Bed and This Rehabilitation Model

Choose a Standard Care Bed When...

The primary requirements are sleeping support, backrest positioning, leg adjustment and routine daily assistance. In these situations, a conventional electric home care or nursing bed may provide a simpler and more economical solution.

Consider This Standing Bed When...

The rehabilitation plan requires progressive upright positioning in addition to normal bed adjustments, or when whole-bed lifting and bidirectional tilt are also required as part of the professional care workflow.

These additional functions move the product into a different category from an ordinary adjustable care bed. Buyers can compare other configurations in our Standing Bed range according to the required rehabilitation level.

One Platform for Extended Care and Progressive Rehabilitation

The practical value of this model lies in the transition between different stages of care. It can remain horizontal for routine support, adjust the back and legs for different resting positions, change its complete working height, provide forward or backward whole-bed tilt, and finally progress toward a 70° ±5° upright position when supervised standing rehabilitation is required.

This makes it a higher-level solution for buyers whose requirements extend beyond the functions of a conventional home care bed.

For detailed configurations, OEM requirements, rehabilitation project purchasing or distributor inquiries, please contact us with your required quantity and intended application.
