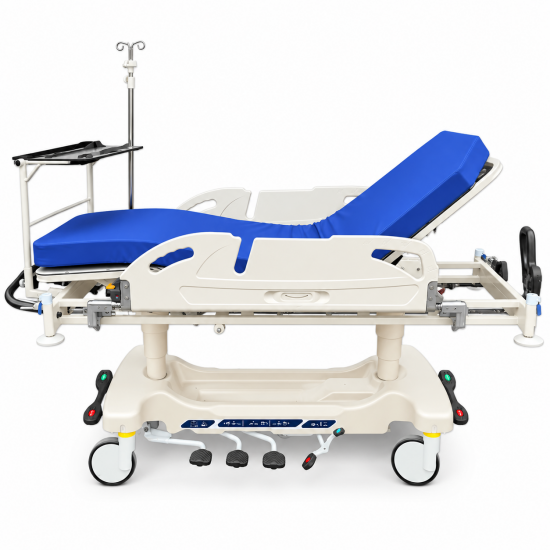

This hydraulic patient transfer stretcher is designed for hospitals and professional healthcare facilities requiring convenient patient access, adjustable positioning and reliable transportation equipment. Its rotating fold-down side rails provide flexible access around the patient platform, while the hydraulic lifting system and multi-position adjustment functions support routine hospital transportation and bedside care.
The stretcher features a four-section resin patient platform, dual hydraulic height adjustment, pneumatic backrest positioning, manual knee section adjustment and Trendelenburg/Reverse Trendelenburg functions. Its integrated medical accessories, central braking system and directional fifth wheel provide a comprehensive configuration for professional healthcare applications.

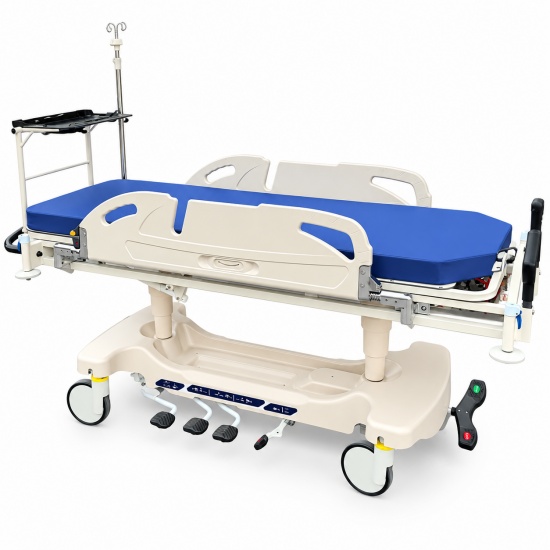

The stretcher is equipped with two rotating side rails featuring a T-shaped panel design. Unlike conventional fixed-position side rails, these panels can rotate and fold down into a horizontal position.
The fold-down configuration provides convenient access to different areas of the patient platform during nursing procedures, patient positioning and transfer preparation.
The side rails can be lowered horizontally to create additional access around the patient platform.
According to the specified configuration, the overall width with the side rails folded down is 1250 mm.
The side rails incorporate a W-shaped safety locking mechanism designed to secure the panels in their operating positions.
Caregivers should confirm that the side rails are correctly positioned and secured before patient transportation.
The side rails are not intended to function as patient transfer boards or weight-bearing supports.
The rotating side rail structure allows caregivers to approach the patient platform from different directions when the rails are lowered.
This configuration is useful for professional healthcare environments where nursing staff need access to different areas of the patient platform during routine care activities.
With the side rails lowered, caregivers can approach the patient from either side of the stretcher.
This arrangement provides additional working access during patient positioning and transfer preparation.
The stretcher also allows caregivers to approach the patient from the head and foot ends when the surrounding space permits.
The four-direction access configuration provides flexibility for different bedside nursing arrangements.
The fold-down side rails can be considered for routine nursing activities that require access to the patient platform, including patient positioning, observation and preparation for transfer between compatible medical equipment.

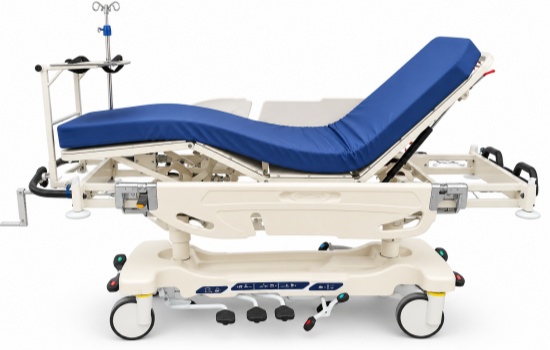

The stretcher features a four-section resin patient platform designed to accommodate multiple positioning functions.
The sectional structure supports adjustable backrest, knee and foot sections, allowing caregivers to change the patient platform configuration according to different care requirements.
The backrest is operated through a pneumatic spring-assisted mechanism and provides an adjustment range of 0° to 90°.
Three red release handles are positioned at the left, center and right sides of the head section to control the backrest adjustment mechanism.
The knee section can be adjusted from 0° to 40° through a manual hand crank.
The crank mechanism incorporates over-cranking protection to help prevent excessive operation.
The foot section also supports angle adjustment, providing an additional positioning option for patient care.
The stretcher is equipped with two hydraulic cylinders for overall height adjustment.
The patient platform can be raised or lowered between 550 mm and 870 mm through foot-operated hydraulic controls.
The adjustable platform height provides flexibility when preparing for patient transfers between compatible hospital beds and other medical equipment.
The stretcher supports whole-platform Trendelenburg and Reverse Trendelenburg adjustment from -18° to +18°.
Angle indicators are installed on both sides of the trolley to assist caregivers in checking the platform inclination.
These positioning functions should be used according to the patient's clinical condition and the healthcare facility's operating procedures.
The stretcher includes several accessories designed to support hospital transportation and routine nursing activities.
Two foldable, height-adjustable IV poles are provided, with one installed at the head end and another at the foot end.
This configuration provides additional flexibility for different patient transportation arrangements.
A documentation table measuring approximately 300 × 400 mm is installed at the foot end.
The tabletop can be positioned horizontally facing either direction, providing a convenient surface for documentation activities.
The lower chassis tray includes a designated oxygen cylinder positioning slot.
This provides an integrated storage location for compatible oxygen equipment during transportation.
The stretcher features a P-shaped push handle at the head end and a U-shaped push handle at the foot end.
These handles provide designated gripping positions for caregivers during manual transportation.
The supplied mattress measures 1880 × 620 × 80 mm and includes an 80 mm foam layer.
The stretcher is equipped with four 200 mm main casters and a centrally controlled braking system.
Operating pedals are positioned at the front, rear, left and right sides of the trolley, allowing caregivers to access the braking and directional control system from different positions.
The central braking system allows the four main casters to be secured through a coordinated locking arrangement.
An additional 100 mm directional fifth wheel is installed beneath the chassis to assist with directional control during transportation.
Four bumper wheels are installed at the corners of the stretcher to help reduce direct contact with surrounding walls or equipment during movement.
The stretcher frame is manufactured from high-quality steel and treated with electrophoresis followed by powder coating.
This surface treatment provides a protective finish for the metal structure.
The specified load capacity is at least 320 kg, allowing hospitals and medical equipment distributors to evaluate the stretcher for patient transportation requirements involving a higher-capacity platform.
Product Type: Hydraulic Patient Transfer Stretcher
Frame Material: High-quality steel
Surface Treatment: Electrophoresis and powder coating
Patient Platform: Four-section resin platform
Overall Dimensions: 2150 × 870 mm
Patient Platform Dimensions: 1920 × 620 mm
Height Adjustment: 550–870 mm
Specified Load Capacity: ≥320 kg
Hydraulic Lifting: Dual hydraulic cylinders
Backrest Adjustment: 0°–90°
Backrest Mechanism: Pneumatic spring-assisted
Knee Section Adjustment: 0°–40°
Knee Adjustment Mechanism: Manual hand crank with over-cranking protection
Trendelenburg / Reverse Trendelenburg: -18° to +18°
Foot Section: Adjustable angle
Side Rails: Two rotating fold-down side rails
Side Rail Locking: W-shaped safety mechanism
Width with Side Rails Folded Down: 1250 mm
Side Rail Load Capacity: ≥10 kg
Main Casters: 4 × 200 mm
Directional Fifth Wheel: 100 mm
Braking System: Central locking system
Corner Protection: Four bumper wheels
Mattress Dimensions: 1880 × 620 × 80 mm
IV Poles: Two foldable, height-adjustable poles
Documentation Table: Approximately 300 × 400 mm
Oxygen Cylinder Storage: Integrated positioning slot
Push Handles: Head-end and foot-end handles
The rotating fold-down side rails and adjustable patient platform provide a configuration suitable for evaluation in hospital bedside nursing and patient positioning applications.
The hydraulic lifting system, central braking and directional fifth wheel support hospital patient transportation between designated departments.
The multi-position platform and integrated accessories provide features that emergency and treatment departments can consider when selecting patient transfer equipment.
Medical equipment distributors and importers can offer this hydraulic stretcher as a multifunctional patient transfer solution for hospitals and professional healthcare facilities.
