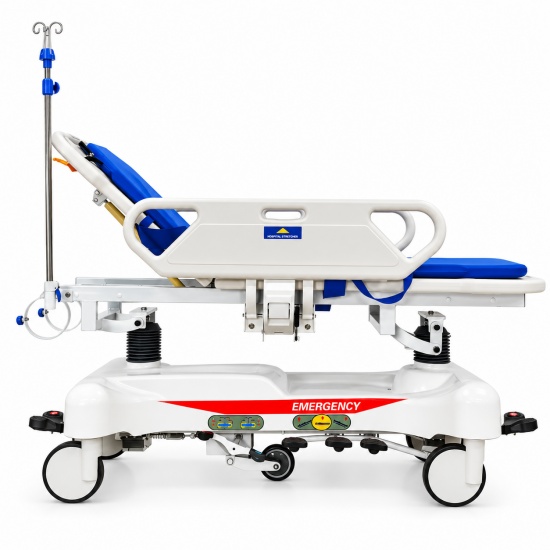

This hydraulic patient transport trolley is designed for hospitals and professional healthcare facilities requiring adjustable patient positioning and convenient bedside care. It combines a gas spring-assisted backrest, height-adjustable ABS side rails and a hydraulic lifting system to support patient transportation, transfer preparation and routine nursing procedures.
The trolley features a 670–970 mm hydraulic height adjustment range, backrest elevation of 0–75° ±5° and front-to-rear platform tilting of 0–18°. Its ABS patient platform, carbon steel frame and water-resistant mattress provide a practical configuration for professional patient care environments.
With a safe working load of 320 kg, four 200 mm centrally locking casters and an independent retractable fifth wheel, the trolley also provides the mobility and positioning functions required for hospital transportation.
The stretcher incorporates several adjustment functions that allow caregivers to change the patient platform position according to different nursing and transportation requirements.
These functions include gas spring-assisted backrest elevation, hydraulic overall height adjustment and front-to-rear platform inclination.
The adjustable backrest allows the patient's upper body to be raised from a horizontal position.
This function provides additional positioning options during routine nursing procedures, observation and patient transportation.
The hydraulic lifting system allows the complete patient platform to be raised or lowered between 670 mm and 970 mm.
Healthcare personnel can adjust the platform height according to different working arrangements and transfer preparation requirements.

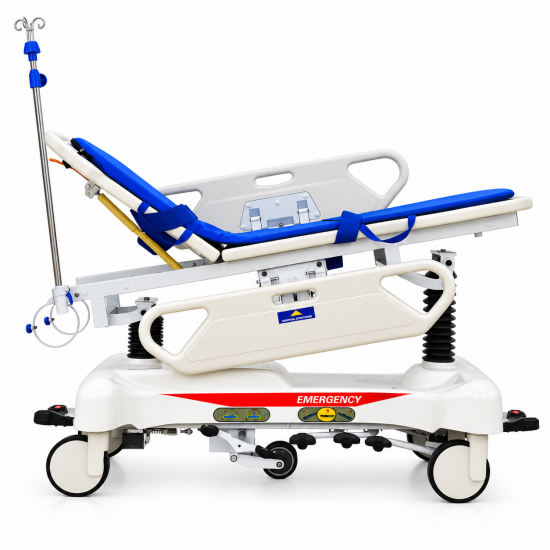

The ABS side rails can be lowered when caregivers need access to the patient platform.
This configuration supports bedside care and transfer preparation when the stretcher is positioned beside compatible medical equipment.
The patient platform features a split-section structure with a gas spring-assisted backrest adjustment mechanism.
The backrest can be raised from 0° to 75° ±5°, providing flexible upper-body positioning during hospital care.
The gas spring-assisted mechanism allows the backrest to be adjusted using one hand.
This operating arrangement provides convenient access to the backrest adjustment function during routine nursing procedures.
The backrest mechanism operates without an electric actuator.
The trolley is equipped with a hydraulic cylinder lifting system that controls the overall height of the patient platform.
The platform can be adjusted between 670 mm and 970 mm, providing a total height adjustment range of 300 mm.
The adjustable height allows caregivers to position the trolley at different levels when preparing transfers between compatible hospital beds and other patient care equipment.
The working height should be adjusted according to the dimensions of the receiving equipment and the healthcare facility's patient transfer procedures.
The trolley features ABS side rails with a pull-up lifting and lowering mechanism.
The side rails provide a protective barrier when raised and can be lowered to allow access to the patient platform.
The ABS side rails can be raised through a pull-up mechanism and lowered when patient access is required.
This configuration provides flexibility for different bedside nursing arrangements.
The side rail lowering mechanism incorporates gas spring damping.
This design provides controlled lowering movement and helps reduce abrupt rail movement during operation.
The side rails should be correctly raised and secured before patient transportation according to the manufacturer's operating instructions.
The trolley is supplied with a mattress featuring a water-resistant fabric surface treatment.
The mattress cover incorporates a zipper and can be removed for washing.
The mattress fabric is treated to resist water penetration at the surface.
This configuration supports routine mattress maintenance in professional healthcare environments.
The mattress cover can be removed through its zipper opening.
The removable cover allows the outer fabric to be washed separately according to the manufacturer's care instructions.
The patient platform is manufactured from ABS engineering plastic and incorporates a split-section design for backrest adjustment.
The ABS material provides a practical patient support surface with toughness and corrosion resistance specified in the product design.
Handles are incorporated into the four corners of the ABS patient platform.
These handles provide additional gripping positions for healthcare personnel during trolley operation and patient transportation.

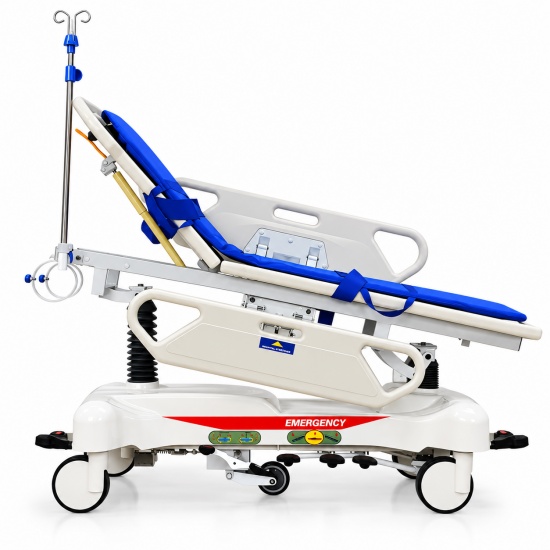

The trolley supports front-to-rear platform inclination adjustment within a specified range of 0–18°.
This function provides an additional positioning option for appropriate hospital care procedures.
The exact directional limits should be confirmed according to the manufacturer's detailed technical instructions.
The trolley is equipped with four 200 mm main casters and a centrally controlled braking system.
The central braking mechanism allows all four main casters to be locked simultaneously through a foot-operated control.
The four main casters provide mobility during transportation through hospital corridors and designated patient care areas.
Brake control mechanisms are positioned at the four corners of the trolley.
This arrangement allows healthcare personnel to operate the braking system from different positions.
An independent retractable fifth wheel is installed beneath the trolley chassis.
Control pedals are provided on both sides of the trolley.
When the fifth wheel is retracted, the trolley can move freely on its four main casters. When engaged, the fifth wheel provides directional guidance during straight-line transportation.
The trolley frame is manufactured from high-quality carbon structural steel sections joined through welding.
The steel structure undergoes surface rust removal followed by electrostatic resin powder coating.
This protective finish provides corrosion resistance and a clean appearance suitable for hospital equipment.
The trolley has a specified safe working load of 320 kg.
This load rating is an important consideration for hospitals and medical equipment distributors evaluating patient transportation equipment.
An integrated storage tray is installed beneath the patient platform.
The tray provides space for compatible medical accessories, including an oxygen cylinder.
The specified storage tray load capacity is 10 kg.
The adjustable backrest, hydraulic lifting system and lowering ABS side rails provide practical functions for routine bedside nursing and patient positioning.
The adjustable platform height and lowering side rails support preparation for transfers between compatible hospital beds and other patient care equipment.
The adjustable patient platform, central braking system and independent fifth wheel provide functions that emergency and treatment departments can evaluate for patient transportation.
The hydraulic lifting system, adjustable backrest and removable mattress cover provide a configuration that professional nursing facilities can consider for patient transportation and care operations.
